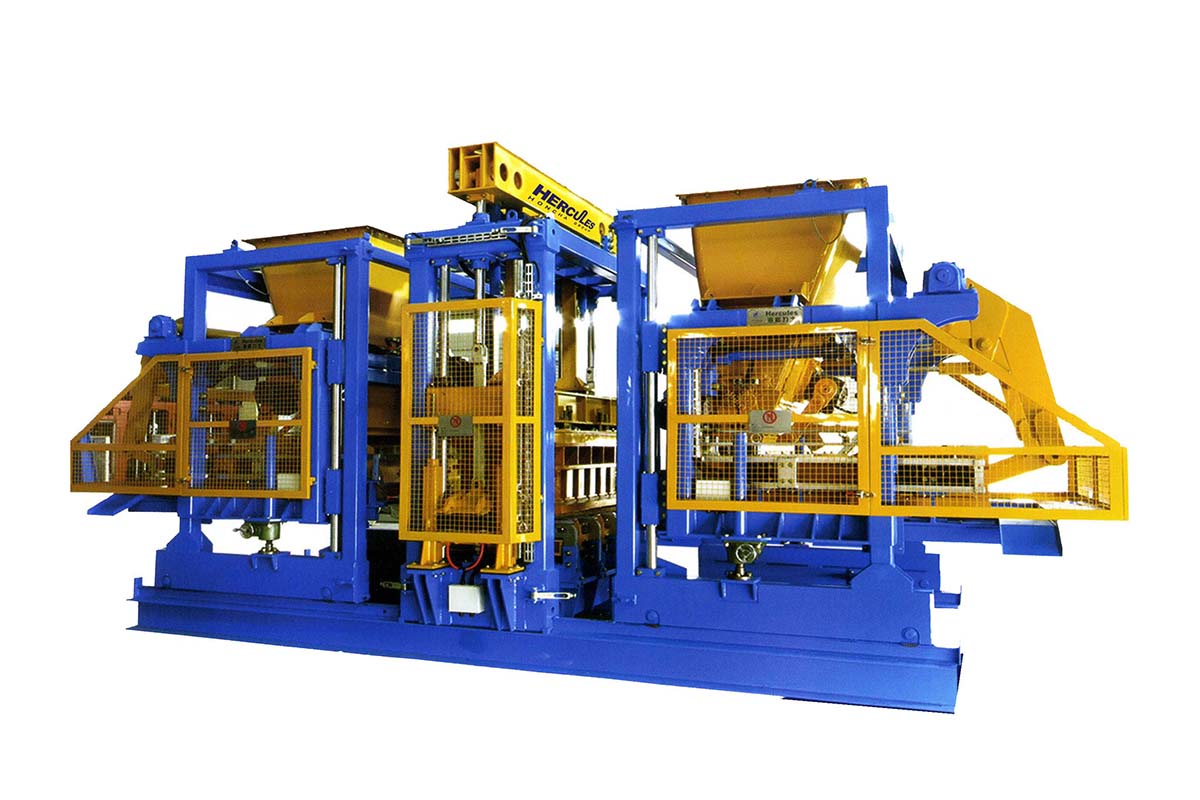

Hercules XL block machine
Hercules is your best choice for
-Economic
-Durability
-High Productivity
-High Quality
with wide range of products such as concrete blocks, pavers, kerbs, retaining wall units, planters and etc.
——Core Technology——
1.Smarter Factory &Easier Management
* High Precise Laser Scanning System
* Easy Production Date Management
* Automatic Warning Sign And Stop System For Wrong Products
* Real-time Production Process Monitoring Either By Mobile Or Computer.
Product laser scanning device
Control computer
Remote control&monitoring in office
Mobile monitoring system
2.Mechanical Parts
* Main Frame Consists Of 3 Moveable Parts, Easier For Maintenance
* Base Frame Is Made By 70mm Solid Steel Structure, Able To Stand Long-Time Strong Vibration
* 4 Synchronized Vibration Motor, More Efficient Vibration, Frequency Controlled
* Bolts and Nuts Design For All Spare Parts, User-Friendly For Maintenance.
* Automatic& Quick Mould Change Device(Within 3 Mins)
* Higher Block Height:Max.500mm
German Technical Programming
Over 100 product recipes provided
Easy operation-visualized touch screen
Precise frequency vibration
Control program-High capacity inverter
Remote control for trouble-shooting
Powerful Hydraulic System
Hydraulic pump with higher capacity(75kw)
High speed control by proportional valves
——Model detail——
Vibration table
Filling box
Mold clamp
Quick mold changer
——Model Specification——
|
Hercules XL Model Specification |
|
| Main Dimension(L*W*H) | 8660*2700*4300mm |
| Useful Moulding Area(L*W*H) | 1280*650*40~500mm |
| Pallet Size(L*W*H) | 1400*1300*40mm |
| Pressure Rating | 15Mpa |
| Vibration | 120~160KN |
| Vibration Frequency | 2900~4800r/min (adjustment) |
| Cycle Time | 15s |
| Power(total) | 140KW |
| Gross Weight | 25T |
★For reference only
——Simple Production Line——
| ITEM | MODEL | POWER |
| 01 Automatic Stacker | For Hercules XL System | 7.5KW |
| 02 Block Sweeper | For Hercules XL System | |
| 03 Block Conveying System | For Hercules XL System | 2.2KW |
| 04 Hercules XL Block Machine | EV Hercules XL System | 140KW |
| 05 Dry Mix Conveyor | 8m | 2.2KW |
| 06 Pallets Conveying System | For Hercules XL System | 11KW |
| 07 Bulk pallet feeder | For Hercules XL System | |
| 08 Cement silo | 50T | |
| 09 JS2000 Enhanced Mixer | JS2000 | 70KW |
| 10 3-Compartments Batching Station | PL1600 III | 13KW |
| 11 Screw Conveyor | 12m | 7.5KW |
| 12 Cement Scale | 300KG | |
| 13 Water Scale | 100KG | |
| A Fork Lift (Optional) | 3T | |
| B Face Mix Section (Optional) | For Hercules XL System |
★The above items can be reduced or added as needed. such as: cement silo(50-100T),screw conveyor, batching machine, automatic pallet feeder ,wheel loader, folk lift, air compressor.
—— Production Capacity——
| Hercules XL | Prouduction Boards:1400*1400 Production Area:1300*1350 Stone Height:40~500mm | |||||
| Proudct | Size(mm) | Face mix | Pcs/cycle | Cycles/min | Prodcution/8h | Production cubic m/8h |
| Standard Brick | 240×115×53 | X | 115 | 4 | 220,800 | 323 |
| Hollow block | 400*200*200 | X | 18 | 3.5 | 30,240 | 484 |
| Hollow block | 390×190×190 | X | 18 | 4 | 34,560 | 487 |
| Hollow Brick | 240×115×90 | X | 50 | 4 | 96,000 | 239 |
| Paver | 225×112.5×60 | X | 50 | 4 | 96,000 | 146 |
| Paver | 200*100*60 | X | 60 | 4 | 115,200 | 138 |
| Paver | 200*100*60 | O | 60 | 3.5 | 100,800 | 121 |
★For Reference Only
★Other brick sizes not mentioned may provide drawings to inquire about specific production capacity.
