Planetary Mixer

Short Description:

The special designed mixing device of vertical axis planetary mixer makes the mixing speed faster and more uniform.

1. Mixing blades are more wear-resistant: Elastic coupling and hydraulic coupler (optional) can effectively protect the transmission system from overload impact:

2. Special developed reducer can effectively distribute power balance to various mixing devices to ensure low noise operation of mixers, even under harsh production conditions.

3. Large-sized repair doors for easy maintenance and cleaning:

High pressure cleaning device and moisture content tester are available.


Product Detail

Product Tags

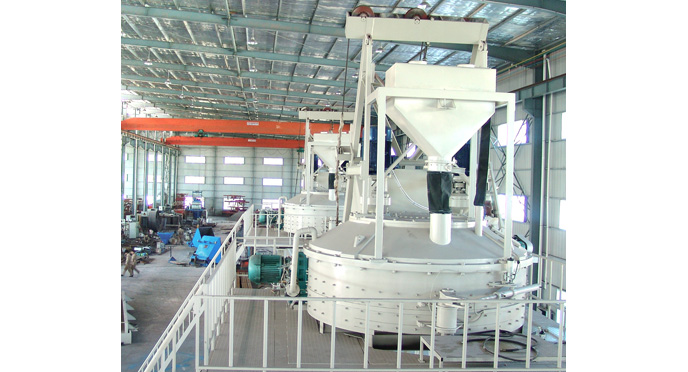

Planetary Mixer

Honcha Planetary Mixer has different models to cater your production capacity. It is normally recommended either when you are interested in our Fully-automatic Production Line or have it separately to work on your construction site. We use high functional spare parts and wearable inside steel paddles to ensure the worklife.

——Technical Specification——

Technical Specification
Basic parameters Model No.
MP250 MP330 MP500 MP750 MP1000 MP1500 MP2000 MP2500 MP3000
Discharging Volume L 250 330 500 750 1000 1500 2000 2500 3000
Feeding Volume L 375 500 750 1125 1500 2250 3000 3750 4500
Mixer Diameter mm 1300 1540 1900 2192 2496 2796 3100 3400 3400
Mixing Power kw 11 15 18.5 30 37 55 75 90 110
Discharge Hydraulic Power kw 2.2 2.2 2.2 2.2 3 3 4 4 4
Planet/Mixing Blade nr 43467 43467 43467 43468 43500 43500 43530 43530 43533
Side Scraper nr 1 1 1 1 1 1 1 1 1
Discharging Scraper ____ ____ ____ 1 1 1 2 2 2
Weight of the Whole Machine kg 1200 1700 2000 3500 6000 7000 8500 10500 11000
